Description
The 160mm saddle clamp 90° tee lateral connector is designed for connecting a 160mm PVC lateral pipe into a larger smooth wall main drainage pipe. It is suitable for 200mm to 400mm main pipes and is ideal for underground drainage, sewer and surface water connection work.
This VIPSeal VTS150 lateral saddle provides a practical way to add a 90° branch connection without replacing a full section of main pipe. As a result, it can help reduce excavation, handling and installation time on site.

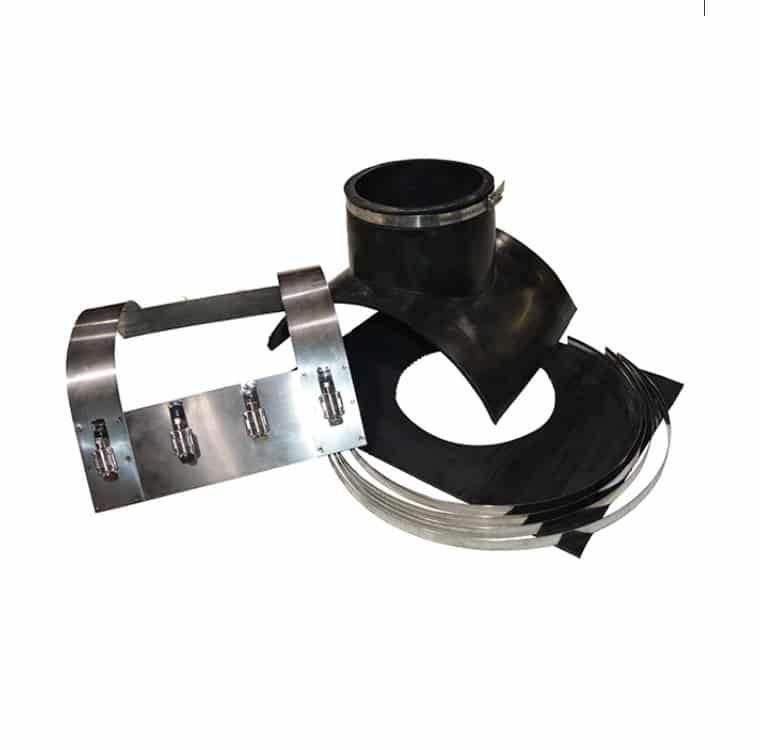

The fitting is designed for use with smooth PVC, concrete and vitrified clay main pipes. It uses a flexible saddle body, EPDM gasket and stainless steel securing components to create a reliable seal between the host pipe and the 160mm lateral connection.
160mm Saddle Clamp for 90° Lateral Connections
The 160mm saddle clamp is used where a 160mm PVC pipe needs to enter a larger drainage main at 90 degrees. This makes it useful for drainage alterations, new branch connections, repair work and site upgrades.
It is especially useful when a full junction fitting is not practical. Instead of cutting out a long section of pipe, the installer can create a suitable opening in the main pipe and fit the saddle over the connection point.
- 90° tee lateral saddle connection
- For 160mm PVC lateral pipe
- Fits 200mm to 400mm smooth wall main pipes
- Suitable for PVC, concrete and vitrified clay host pipes
- EPDM gasket helps create a watertight and airtight seal
- 304 stainless steel shroud and clamps for secure fitting
- Useful for foul water and surface water drainage work
- Suitable for trade, groundwork and civil drainage projects
160mm Saddle Clamp for Underground Drainage
This 160mm saddle clamp is a useful fitting for underground drainage installations where a branch pipe needs to connect into an existing main run. It can be used on suitable smooth wall pipes with the correct outside diameter range.
The saddle is secured with straps that pass around the outside of the main pipe. Therefore, enough working space must be excavated around the pipe before installation. The installer should also check the pipe material, outside diameter and wall condition before fitting.
Once the pipe opening is prepared, the gasket and saddle are positioned over the hole. The stainless steel shroud and straps are then tightened to the required torque. Finally, the 160mm lateral pipe is inserted and secured into the saddle connection.
160mm Saddle Clamp Installation Use
The 160mm saddle clamp is best suited to drainage jobs where a neat and secure 90° branch connection is needed. It can help save time compared with installing a complete junction, especially where the main pipe is already in position.
It is important to follow the manufacturer’s fitting instructions. The hole must allow the saddle to sit correctly against the pipe surface. Also, the clamps should be tightened evenly to the correct torque. This helps maintain a secure seal before bedding and backfilling.
For best results, use this fitting with compatible 160mm PVC underground drainage pipe and suitable installation tools. Always follow site specifications, Building Regulations and manufacturer guidance for drainage connections, bedding, testing and backfill.
Compatible Underground Drainage Products
TWS stocks a wider range of underground drainage products, including 160mm pipe, bends, couplers, access fittings, adaptors and related drainage accessories. This saddle clamp can be used as part of a larger drainage system where the pipe sizes and application are suitable.
View all 160mm underground drainage products at TWS.
Shop underground drainage at TWS.
For official manufacturer information, see the VIPSeal VTS/VYS lateral connection range.
