McAlpine TR10 40mm 1½” Running Tubular P Trap
McAlpine TR10 is a 40mm / 1½” running tubular swivel P trap for horizontal waste pipe installations. It is designed for sink, basin, urinal and general waste pipework where the waste needs to pass through the trap in line, rather than drop into a standard top-inlet P trap.
McAlpine TR10 Trade Overview

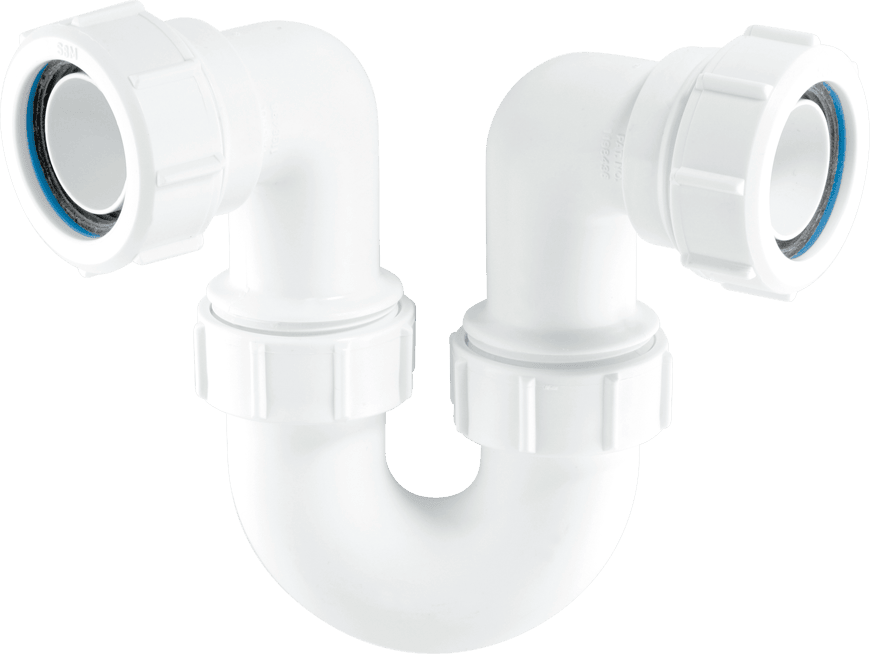

The McAlpine TR10 running P trap is useful on waste layouts where both connections run horizontally. This makes it different from a standard tubular P trap, which usually has a vertical inlet and horizontal outlet. The TR10 has a U-shaped trap body with compression connections on each side, making it suitable for specific pipework layouts where an in-line running trap is needed.
This trap has a 75mm water seal to help prevent drain odours from coming back through the waste system. It is manufactured from white polypropylene, giving a durable and lightweight fitting for everyday plumbing use.
The TR10 uses a 1½” Multifit compression outlet. This connection is suitable for common waste pipe materials including plastic, copper and lead pipe, giving installers flexibility when working with new or existing waste pipework.
Key Features
- McAlpine TR10 running tubular swivel P trap
- 40mm / 1½” size for waste pipe installations
- Running trap design with horizontal connections on both sides
- 75mm water seal to help prevent drain odours
- White polypropylene construction
- 1½” Multifit compression outlet for flexible pipe connection
- Suitable for plastic, copper and lead waste pipe
- Useful where a standard top-inlet P trap will not suit the pipe layout
- Good option for repairs, replacements and awkward waste runs
- Conforms to BS EN 274-1:2002
Common Uses
- 40mm horizontal waste pipe runs
- Sink and basin waste pipework where a running trap is required
- Urinal waste pipework
- Replacement of old 40mm running P traps
- Maintenance and repair work on existing waste systems
- Domestic plumbing repairs
- Commercial and trade plumbing installations
- Awkward pipe layouts where a standard P trap does not line up
Why Choose a Running Tubular P Trap?
A running tubular P trap is used when the pipework needs to connect horizontally through the trap. This can be helpful where the waste route is already fixed, or where a standard vertical inlet trap would not fit correctly.
The McAlpine TR10 gives installers a dependable 40mm running trap option with a proper 75mm water seal and a Multifit compression outlet. It is a useful stock item for plumbers, maintenance teams and trade customers dealing with non-standard waste layouts.
Installation Notes
Before fitting, check that the waste pipe size is suitable for a 40mm / 1½” trap. Cut the pipe cleanly and make sure both pipe ends are fully seated inside the compression fittings. Line up the running trap with the horizontal waste pipework, then tighten the compression nuts securely by hand.
After fitting, run water through the waste system and check all joints for leaks. Make sure the trap remains accessible for future cleaning and maintenance.
The McAlpine TR10 is a 40mm running tubular P trap. For a standard 40mm top-inlet P trap, use the SC10. For an adjustable inlet version, use the ASC10.
