Description

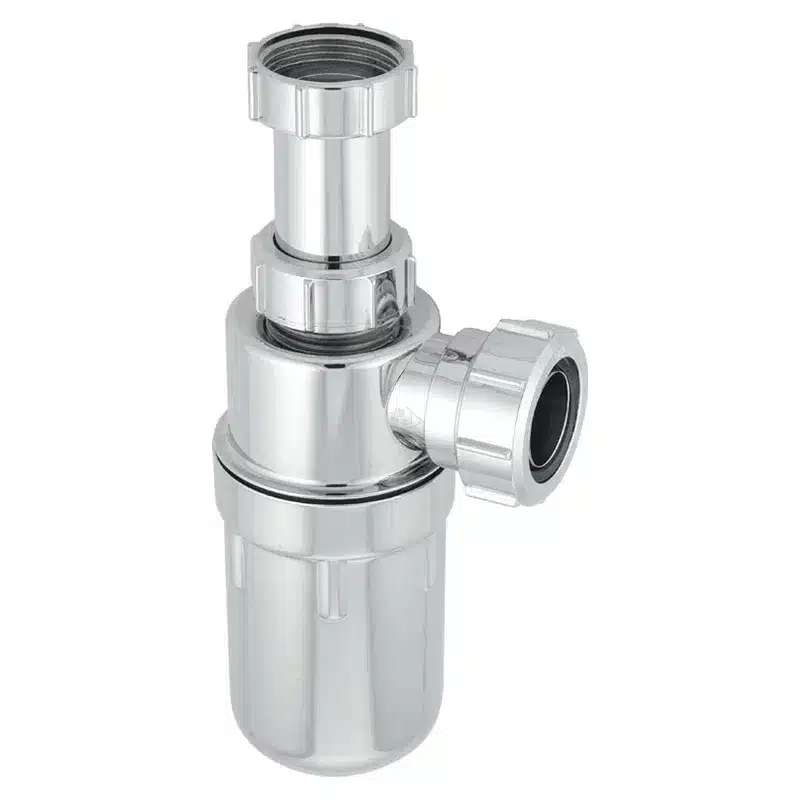

McAlpine C10AR-CP 40mm 1½” Chrome Resealing Adjustable Bottle Trap
McAlpine C10AR-CP is a 40mm / 1½” chrome-plated plastic resealing adjustable inlet bottle trap for sink, basin and general waste pipe installations. It is designed for exposed waste pipework where a chrome finish is required, while still giving installers the benefit of height adjustment and resealing trap performance.
McAlpine C10AR-CP Trade Overview
The McAlpine C10AR-CP combines three useful features in one 40mm trap: a chrome-plated finish, an adjustable inlet and a resealing bottle trap design. This makes it a good option for plumbers, bathroom fitters, kitchen fitters and maintenance teams working on visible 40mm waste pipework.
The adjustable inlet helps line the trap up with the waste outlet and existing pipework. This is useful on repair, replacement and refurbishment jobs where the pipe positions may not be perfect. The chrome-plated plastic finish gives a cleaner appearance than a standard white trap, making it suitable where the trap will remain visible.
The resealing action helps retain an adequate water seal under syphonic conditions. This helps reduce the risk of the trap seal being pulled away by pressure changes in the waste system. The trap also has a 75mm water seal to help prevent drain odours from coming back through the waste outlet.
The 1½” Multifit compression outlet is suitable for common waste pipe materials including plastic, copper and lead pipe. This gives installers more flexibility when connecting into existing waste runs.
Key Features
- McAlpine C10AR-CP chrome resealing adjustable bottle trap
- 40mm / 1½” size for sink, basin and waste pipe installations
- Chrome-plated plastic finish for exposed waste pipework
- Adjustable inlet helps line up with existing pipework
- Resealing action helps retain the trap water seal
- 75mm water seal to help prevent drain odours
- 1½” Multifit compression outlet for flexible pipe connection
- Suitable for plastic, copper and lead waste pipe
- Useful for repair, maintenance and refurbishment work
- Conforms to BS EN 274-1:2002
Common Uses
- 40mm sink waste connections
- Exposed basin waste pipework
- Kitchen and utility sink installations
- Bathroom and cloakroom refurbishment work
- Replacement of old or marked chrome bottle traps
- Problem waste systems affected by syphonic pressure
- Domestic plumbing repairs and maintenance
- Trade plumbing installations and upgrades
Why Choose a Chrome Resealing Adjustable Bottle Trap?
A chrome bottle trap is often used when the trap and pipework below the sink or basin are visible. It gives a neater finish than a standard white trap and suits exposed installations in kitchens, bathrooms, cloakrooms and utility spaces.
The adjustable inlet gives extra fitting flexibility, which can save time when working around existing pipework. The resealing design also helps protect the trap water seal where pressure changes in the waste system may be an issue.
Installation Notes
Before fitting, check that the waste outlet and waste pipe are suitable for a 40mm / 1½” trap. Cut the waste pipe cleanly and make sure it is fully seated inside the Multifit compression outlet. Adjust the inlet height to suit the waste outlet position, then tighten all compression nuts securely by hand.
After installation, run water through the waste and check every joint for leaks. Make sure the trap remains accessible for cleaning and future maintenance.
