Description

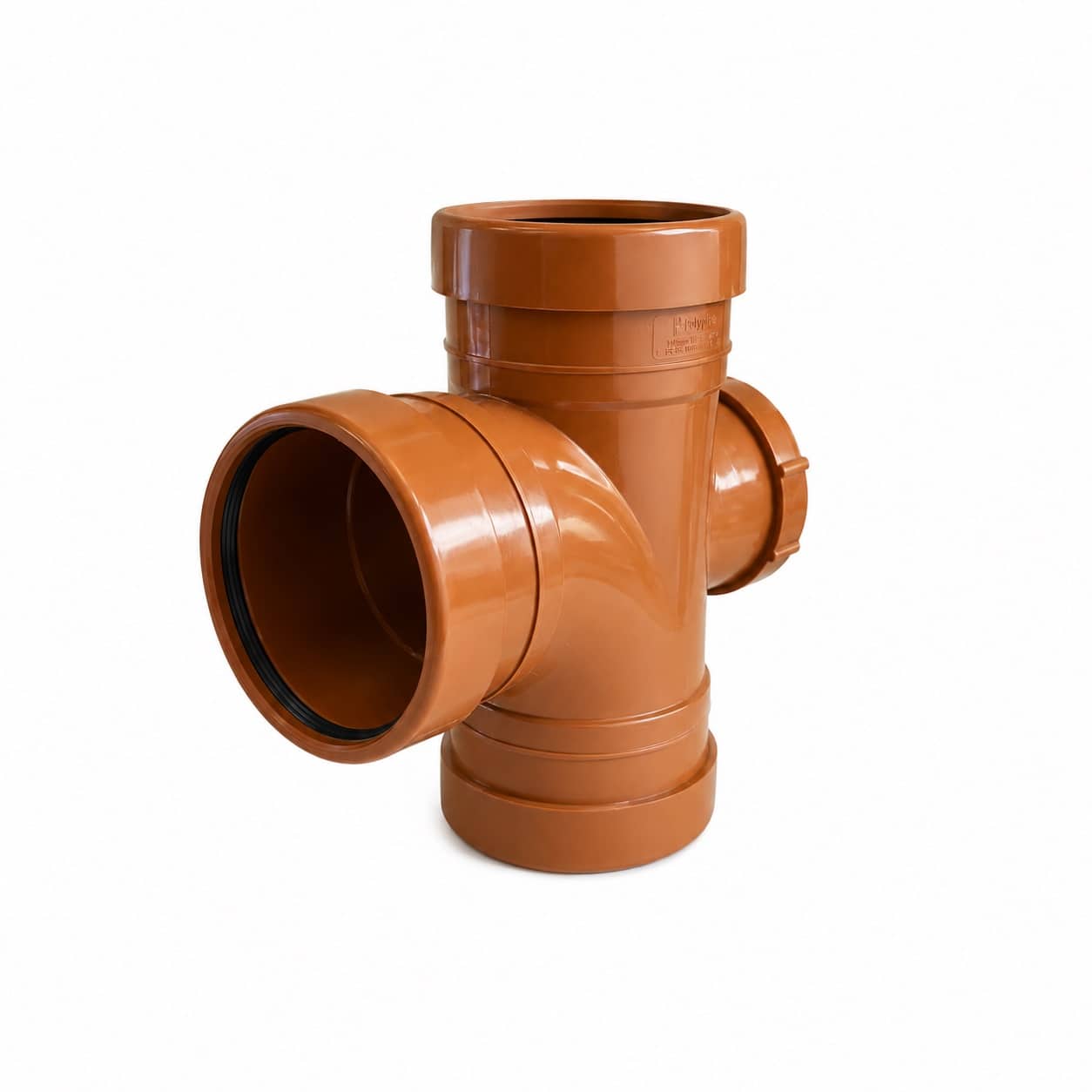

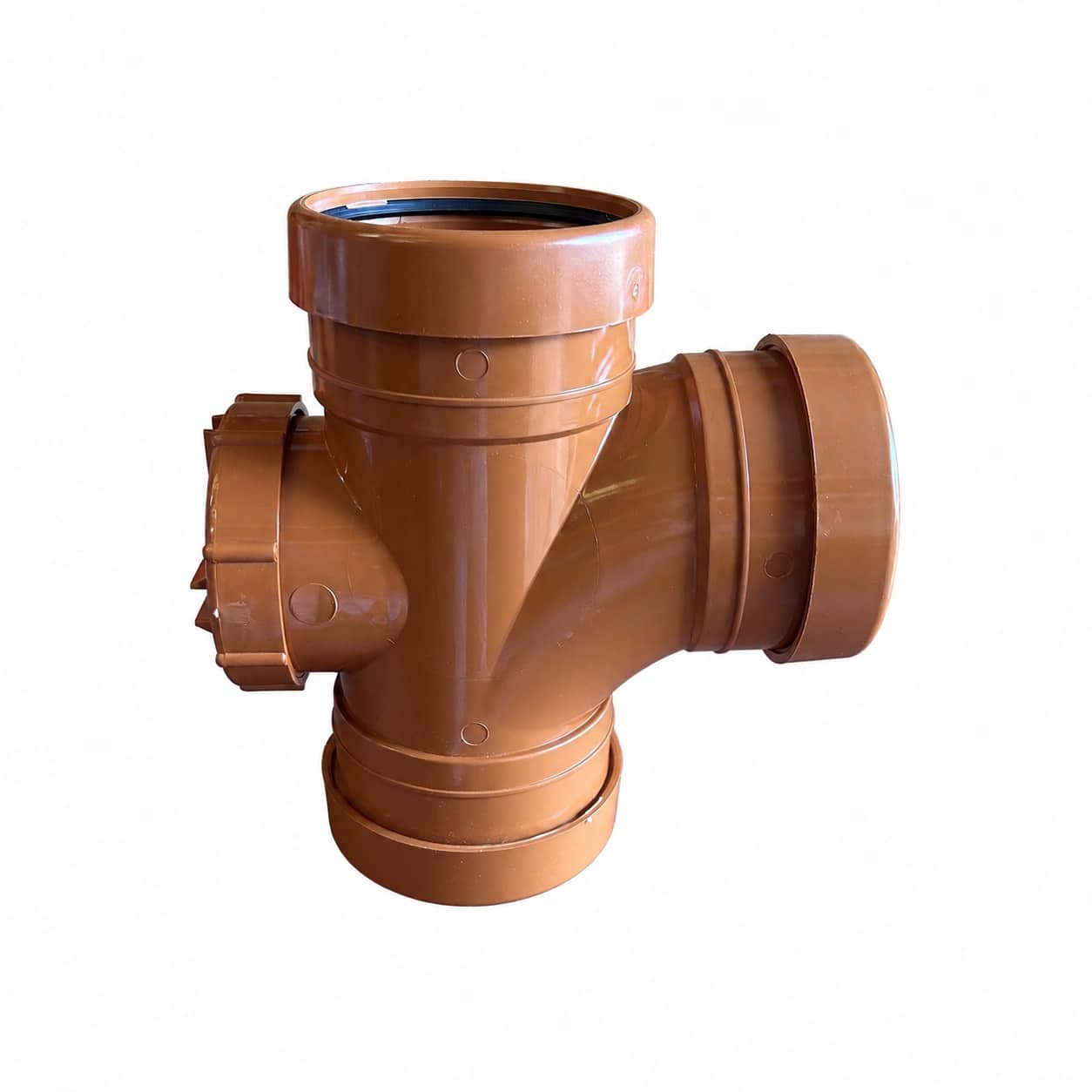

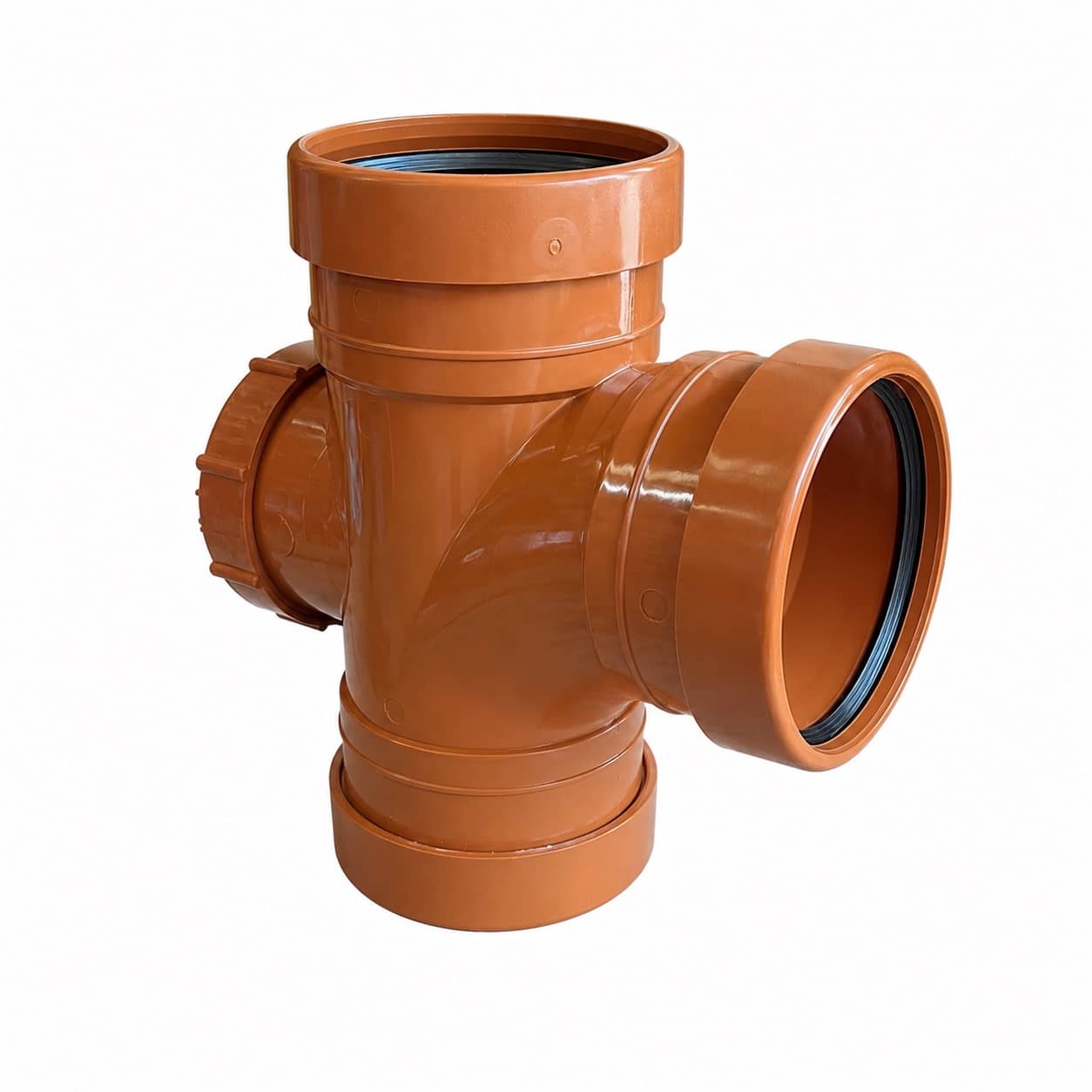

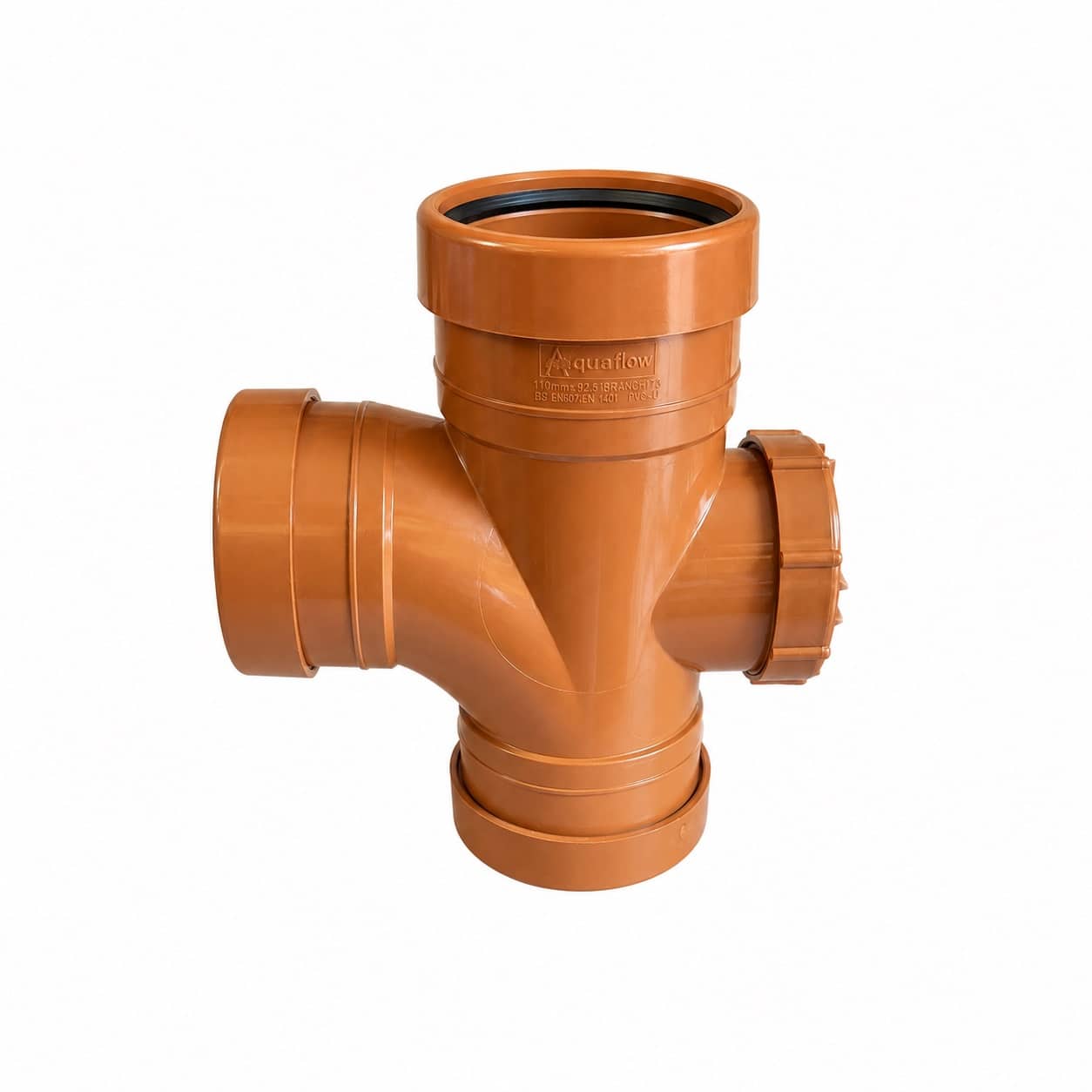

The 110mm Underground Drainage 90° Triple Socket Access Tee Branch is designed to connect a 110mm branch pipe into a main drainage run with integrated access for inspection and maintenance. The 110mm Underground Drainage 90° Triple Socket Access Tee Branch allows efficient junction connections while providing a rodding access point within underground drainage systems.
110mm Underground Drainage 90° Triple Socket Access Tee Branch Installation & Use
The 110mm Underground Drainage 90° Triple Socket Access Tee Branch is manufactured from durable PVC-U for long-term underground performance. It is resistant to corrosion, ground chemicals, and typical soil conditions found in UK drainage installations. This makes it suitable for domestic, commercial, and groundwork projects.
The triple socket configuration includes rubber ring seals on all connection points for secure push-fit installation. This ensures watertight joints while allowing for minor ground movement after installation. The integrated access point features a removable screwed cap, enabling easy rodding, inspection, and maintenance of the drainage system.
The 90° tee branch design provides a direct perpendicular connection from branch pipework such as gullies, inspection chambers, and secondary drainage lines into the main pipe run. The access feature reduces the need for additional inspection fittings and simplifies long-term system maintenance.
The smooth internal bore supports steady foul and surface water flow while minimising turbulence at the junction point.
Compatibility: The 110mm Underground Drainage 90° Triple Socket Access Tee Branch is compatible with all standard 110mm underground drainage pipes, bends, couplers, access pipes, and fittings used in UK underground drainage systems.
