Description
The straight pan connector long 110mm version is used to connect a WC pan outlet to 4″/110mm soil pipe where a direct, adjustable connection is required. Its rigid body makes it a practical option for toilet replacements, refurbishment work and standard WC installations.

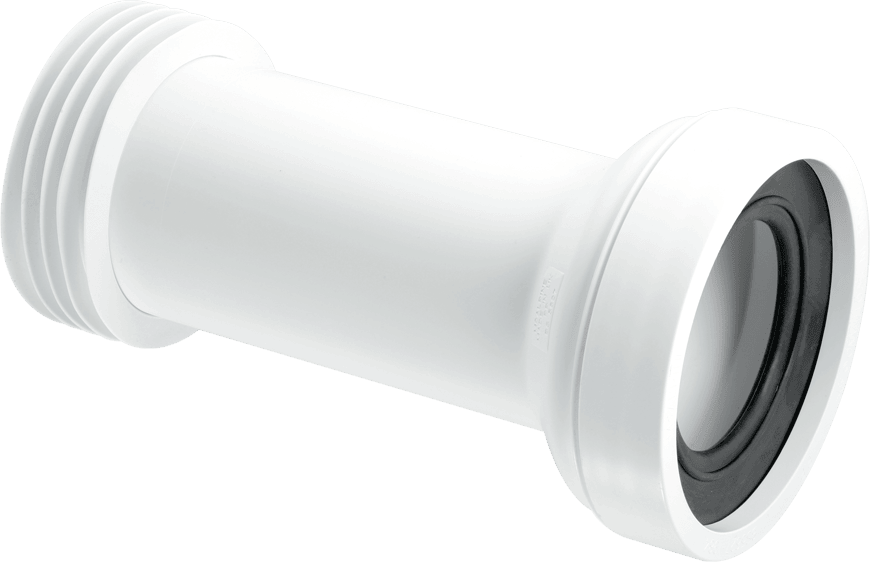

This McAlpine WC connector has a 97-107mm inlet to suit standard WC pan spigots and a 4″/110mm finned outlet for internal connection into compatible PVC-U or cast iron soil pipe. The adjustable straight design helps create a neat connection where the WC pan outlet lines up with the soil pipe.
Made from polypropylene, this white rigid pan connector is suitable for plumbers, builders and bathroom installers working on WC waste connections where an offset, angled or flexible connector is not required.
Straight Pan Connector for WC Installations
The straight pan connector is designed for toilet waste installations where a direct connection is needed from the WC pan into 4″/110mm soil pipe. It is useful for clean, simple layouts where the pipework lines up correctly.
- Straight pan connector for WC waste connections
- Long adjustable length design
- 97-107mm inlet suits standard WC pan spigots
- 4″/110mm finned outlet
- Suitable for internal connection into PVC-U and cast iron soil pipe
- Can be adjusted or trimmed to suit the installation
- Good option where an offset or flexible connector is not needed
- White polypropylene construction
- Suitable for toilet replacements and refurbishment work
- Manufactured by McAlpine
Fitting a Straight Pan Connector
Before fitting, check that the WC pan spigot and receiving soil pipe are clean, sound and free from debris. A clean connection helps the seals sit correctly and reduces the risk of leaks.
Push the inlet firmly onto the WC pan spigot, then connect the 4″/110mm finned outlet into the soil pipe. Make sure the connector sits naturally without twisting, strain or poor alignment once the toilet pan is positioned.
Finned Outlet Version
This straight pan connector has a 4″/110mm finned outlet. This makes it suitable for internal connection into compatible soil pipe, rather than fitting into a 110mm soil or underground pipe fitting like the plain end version.
Before ordering, check whether the installation needs a finned outlet or a plain end outlet. If the connector needs to fit into a 110mm soil or underground pipe fitting, the plain end version may be more suitable.
WC Pan Connectors at TWS
This straight long pan connector is part of our WC pan connector and soil pipe fittings range. You can also browse related offset, angled, 90 degree, extension and flexible toilet pan connectors below.
View WC pan connectors at TWS.
Shop soil pipe and fittings at TWS.
For manufacturer information, see the McAlpine straight adjustable length rigid WC connector page.
