Description

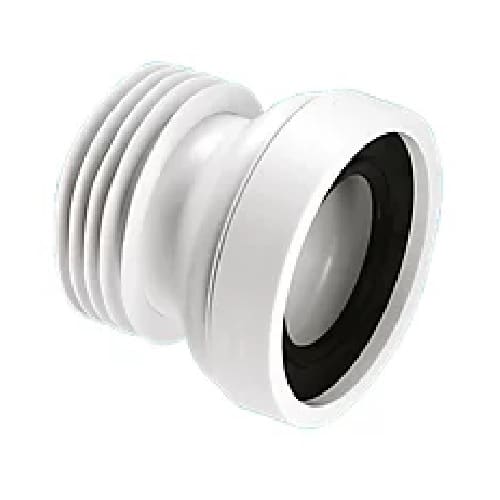

The straight pan connector 110mm is used to connect a WC pan outlet directly into 4″/110mm soil pipe. Its short rigid design makes it a practical option for standard toilet installations where the pan outlet lines up neatly with the soil pipe behind the WC.
This McAlpine WC connector has a 97-107mm inlet to suit standard WC pan spigots and a 4″/110mm outlet for internal connection into compatible PVC-U or cast iron soil pipe. It is a simple, reliable choice where an offset, angled, long or flexible pan connector is not required.
Made with a rigid body and rubber sealing components, this white WC pan connector is suitable for plumbers, builders and bathroom installers working on toilet replacements, refurbishment projects and WC waste pipe connections.
Straight Pan Connector for WC Installations
The straight pan connector is designed for toilet waste installations where a direct connection is needed from the WC pan into 4″/110mm soil pipe. It is useful for clean, simple layouts where the existing pipework lines up correctly.
- Straight pan connector for WC waste connections
- Short rigid connector design
- 97-107mm inlet suits standard WC pan spigots
- 4″/110mm outlet suits compatible soil pipe connections
- Suitable for internal connection into PVC-U and cast iron soil pipe
- Ideal where the pan outlet and soil pipe line up directly
- Good option where an offset or flexible connector is not needed
- White finish for standard bathroom installations
- Suitable for toilet replacements and refurbishment work
- Manufactured by McAlpine
Fitting a Straight Pan Connector
Before fitting, check that the WC pan spigot and receiving soil pipe are clean, sound and free from debris. A clean connection helps the seals sit correctly and reduces the risk of leaks.
Push the inlet firmly onto the WC pan spigot, then connect the 4″/110mm outlet into the soil pipe. Make sure the connector sits naturally without twisting, strain or poor alignment once the toilet pan is positioned.
Straight Pan Connector 110mm Outlet
This straight pan connector has a 4″/110mm outlet for internal soil pipe connection. It is different from the plain end version, which is designed to fit into a 110mm soil or underground pipe fitting.
Before ordering, check whether the installation needs a standard 4″/110mm outlet, a plain end outlet, a longer adjustable connector, an offset connector or a flexible pan connector. Choosing the correct outlet type helps avoid fitting issues on site.
WC Pan Connectors at TWS
This straight pan connector is part of our WC pan connector and soil pipe fittings range. You can also browse related offset, angled, 90 degree, extension and flexible toilet pan connectors below.
View WC pan connectors at TWS.
Shop soil pipe and fittings at TWS.
For manufacturer information, see the McAlpine straight rigid WC connector page.
