Description

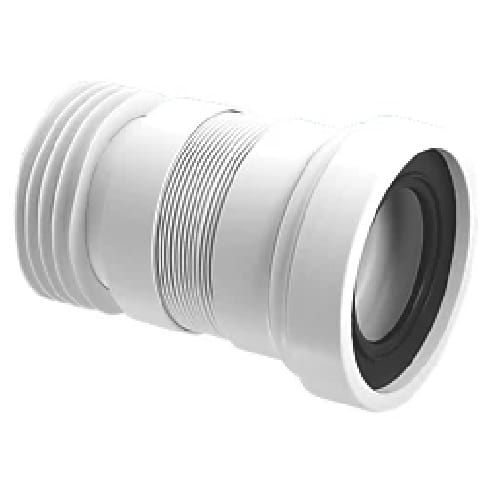

The flexible pan connector 100-160mm is used to connect a WC pan outlet to 4″/110mm soil pipe. Its compact flexible body helps make toilet installation easier where the pan outlet and soil pipe are close together but slightly awkward to line up.
This McAlpine flexible pan connector has a 97-107mm inlet to suit standard WC pan spigots and a 4″/110mm outlet for compatible PVC-U or cast iron soil pipe. The short 100-160mm adjustable length makes it useful for tight toilet installations, repair work and bathroom refurbishments.
Made from polypropylene, this white WC pan connector is suitable for plumbers, builders and bathroom installers working on toilet replacements, cloakrooms, ensuites and compact WC spaces.
Flexible Pan Connector for WC Installations
The flexible pan connector is ideal for connecting toilet pans where the pan outlet and soil pipe need a small amount of adjustment. It gives more movement than a rigid pan connector while keeping the connection compact.
- Flexible pan connector for WC pan to soil pipe connections
- Compact 100-160mm adjustable length
- 97-107mm inlet suits standard WC pan spigots
- 4″/110mm outlet suits compatible soil pipe connections
- Outlet fits PVC-U and cast iron soil pipe
- Useful where a rigid pan connector will not align correctly
- Ideal for tight spaces, cloakrooms and replacement work
- Polypropylene construction
- White finish for standard bathroom and plumbing installations
- Manufactured by McAlpine
Fitting a Flexible Pan Connector
Before fitting, check that the WC pan spigot and soil pipe are clean, sound and free from debris. A clean connection helps the seals sit correctly and reduces the chance of leaks.
Push the inlet firmly onto the WC pan spigot, then connect the outlet into the 4″/110mm soil pipe. Make sure the connector is not twisted, crushed or overstretched. The flexible section should sit naturally without sharp bends or strain.
Flexible Pan Connector for Tight Pipework
This flexible pan connector is especially useful where the WC pan and soil pipe are close together but slightly misaligned. The 100-160mm adjustment range gives enough movement for many compact toilet waste connections.
Before ordering, check the required length, pan outlet size and soil pipe position. This connector should only be used where the finished connection falls within the 100-160mm adjustable range.
WC Pan Connectors at TWS
This flexible pan connector is part of our WC pan connector and soil pipe fittings range. You can also browse related straight, offset, angled and flexible toilet pan connectors below.
View WC pan connectors at TWS.
Shop soil pipe and fittings at TWS.
For manufacturer information, see the McAlpine straight flexible WC connector page.
