Description

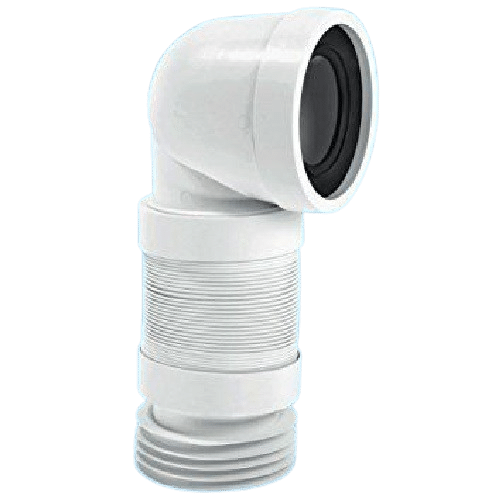

The flexible pan connector 90 degree version is used to connect a WC pan outlet to 4″/110mm soil pipe where a bend and extra fitting movement are required. It is a practical option for toilet installations where the pan outlet and soil pipe are awkward to line up.
This McAlpine flexible pan connector has a 97-107mm inlet to suit standard WC pan spigots and a 4″/110mm outlet for compatible PVC-U or cast iron soil pipe. The longer 220-400mm adjustable length gives extra reach compared with the shorter 90 degree flexible connector.
Made from polypropylene, this white WC pan connector is suitable for plumbers, builders and bathroom installers working on toilet replacements, refurbishment projects and new WC installations.
Flexible Pan Connector for 90 Degree WC Installations
The flexible pan connector is ideal where the toilet waste needs to turn through 90 degrees while still allowing movement during fitting. It helps make installation easier where the pan outlet and soil pipe are slightly out of line.
- 90 degree flexible pan connector for WC waste connections
- Adjustable 220-400mm length
- 97-107mm inlet suits standard WC pan spigots
- 4″/110mm outlet suits compatible soil pipe connections
- Suitable for PVC-U and cast iron soil pipe internal diameters
- Flexible body helps with awkward toilet waste alignment
- Useful where a rigid pan connector will not line up correctly
- Polypropylene construction
- White finish for standard bathroom and plumbing installations
- Manufactured by McAlpine
Fitting a Flexible Pan Connector
Before fitting, check that the WC pan spigot and receiving soil pipe are clean, sound and free from debris. A clean connection helps the seals sit correctly and reduces the chance of leaks.
Push the inlet firmly onto the WC pan spigot, then connect the 4″/110mm outlet into the soil pipe. Make sure the flexible section sits naturally without being twisted, crushed or overstretched.
Long 90 Degree Flexible Pan Connector
This flexible pan connector is the longer 90 degree version, making it useful where extra reach is needed behind or beside the WC pan. The 220-400mm adjustment range helps with awkward layouts, replacement work and refurbishment jobs.
Before ordering, check the pan outlet size, soil pipe position and available installation space. This connector is designed for 4″/110mm pipework and should not be used where a 90mm outlet version is required.
WC Pan Connectors at TWS
This 90 degree flexible pan connector is part of our WC pan connector and soil pipe fittings range. You can also browse related straight, angled, offset, extension and rigid toilet pan connectors below.
