Description

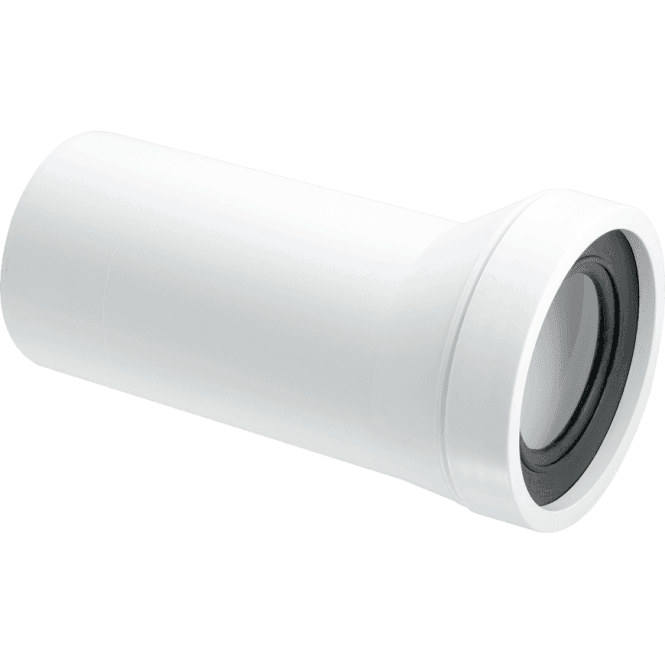

The offset pan connector 20mm plain end version is used to connect a WC pan outlet to a compatible 110mm soil or underground pipe fitting where a small offset is required. Its rigid adjustable design makes it useful for toilet replacements, refurbishment work and awkward bathroom layouts.
This McAlpine WC connector has a 97-107mm inlet to suit standard WC pan spigots and a 110mm plain end outlet. The 20mm offset helps line up the toilet waste connection where the pan outlet and pipework are slightly out of position.
Made from polypropylene, this white rigid pan connector is suitable for plumbers, builders and bathroom installers working on WC waste connections where a flexible connector is not needed.
Offset Pan Connector for WC Installations
The offset pan connector is designed for toilet waste installations where the soil pipe or receiving fitting is slightly misaligned with the WC pan outlet. The 20mm offset helps correct small alignment issues while keeping the connection neat and rigid.
- 20mm offset pan connector for WC waste connections
- Rigid adjustable length design
- 97-107mm inlet suits standard WC pan spigots
- 110mm plain end outlet
- Designed to fit compatible 110mm soil or underground pipe fittings
- Useful where a small offset is required
- Good option where a flexible connector is not needed
- White polypropylene construction
- Suitable for toilet replacements and refurbishment work
- Manufactured by McAlpine
Fitting an Offset Pan Connector
Before fitting, check that the WC pan spigot and receiving 110mm fitting are clean, sound and free from debris. A clean connection helps the seals sit correctly and reduces the risk of leaks.
Push the inlet firmly onto the WC pan spigot, then connect the 110mm plain end outlet into the correct soil or underground pipe fitting. Adjust the connector as required and make sure it sits naturally without twisting, strain or poor alignment once the toilet pan is positioned.
Plain End Outlet Version
This offset pan connector has a 110mm plain end outlet. This makes it different from the finned outlet version, which is designed to push directly into the internal diameter of 4″/110mm soil pipe.
Before ordering, check whether the installation needs a plain end outlet or a finned outlet. If the connector needs to push directly into 4″/110mm internal diameter soil pipe, the finned outlet version may be more suitable.
