Description
Freefoam 150mm Shiplap Cladding 5m
Freefoam 150mm Shiplap Cladding is a durable external PVC-U cladding board with a traditional overlapping profile. Each 5m board provides 150mm of installed cover and is suitable for domestic, commercial and refurbishment projects.
The FC151 board creates a clean single-shiplap appearance and can be installed horizontally or vertically. It is particularly suitable for dormers, gable ends, extensions, garden rooms and replacing older timber cladding or hanging tiles.
Delivery & Collection
This 5m product is available via Local North East Delivery or Store Collection only.

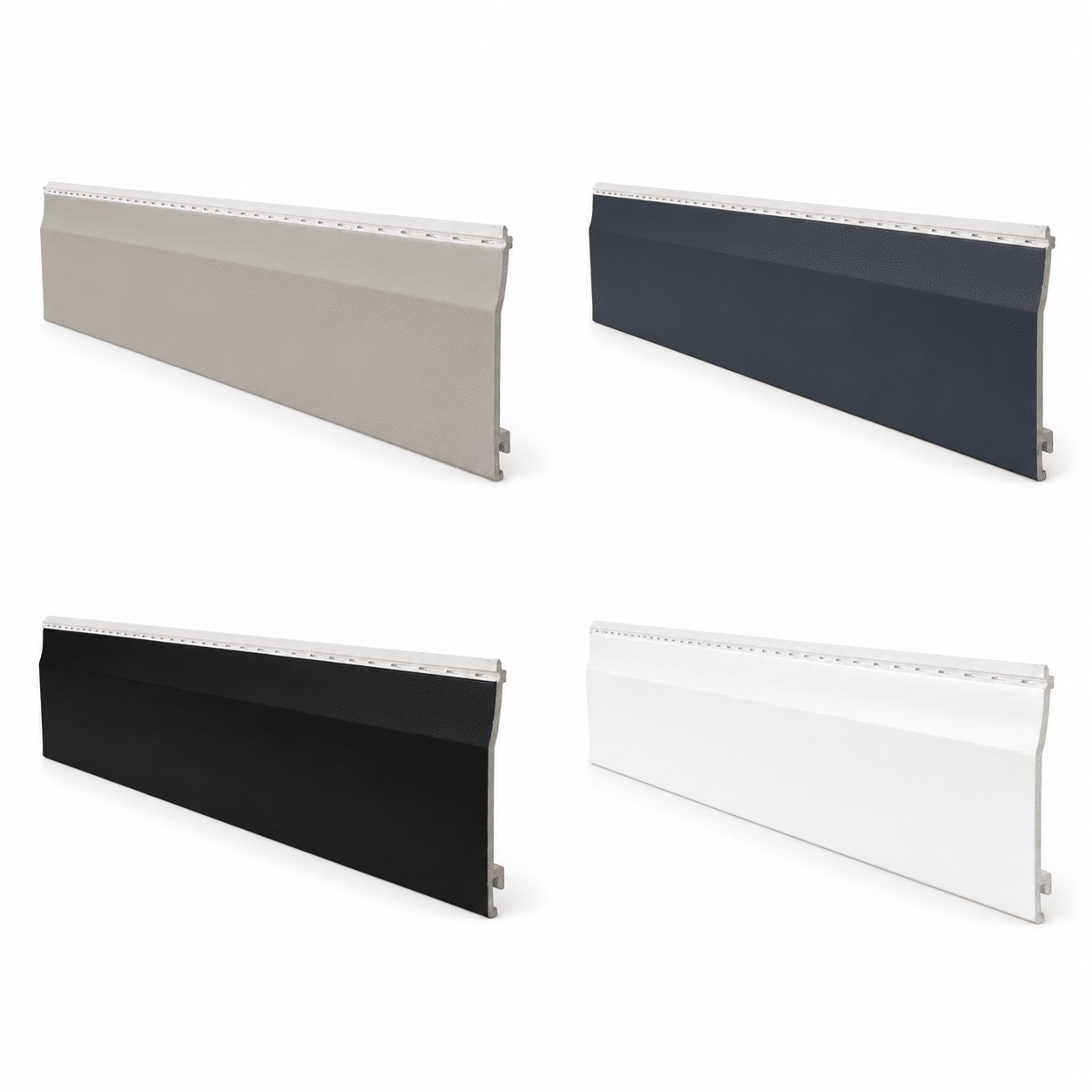

Freefoam 150mm Shiplap Cladding Colours
This variable product is available from TWS Plastics in four stocked finishes:

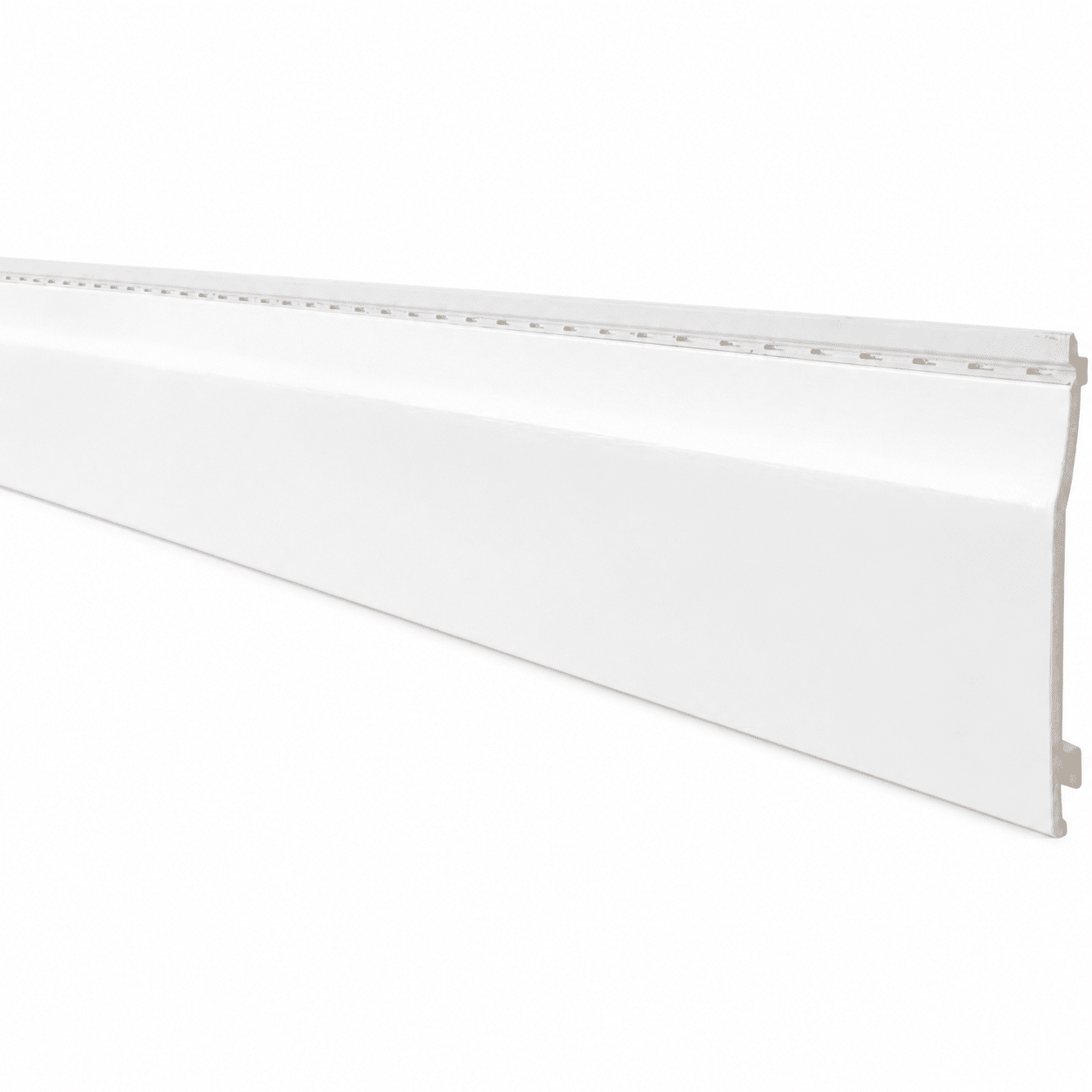

- White: Smooth gloss finish
- Black Ash: Black woodgrain foil
- Anthracite Grey: Woodgrain foil, nearest equivalent RAL 7016

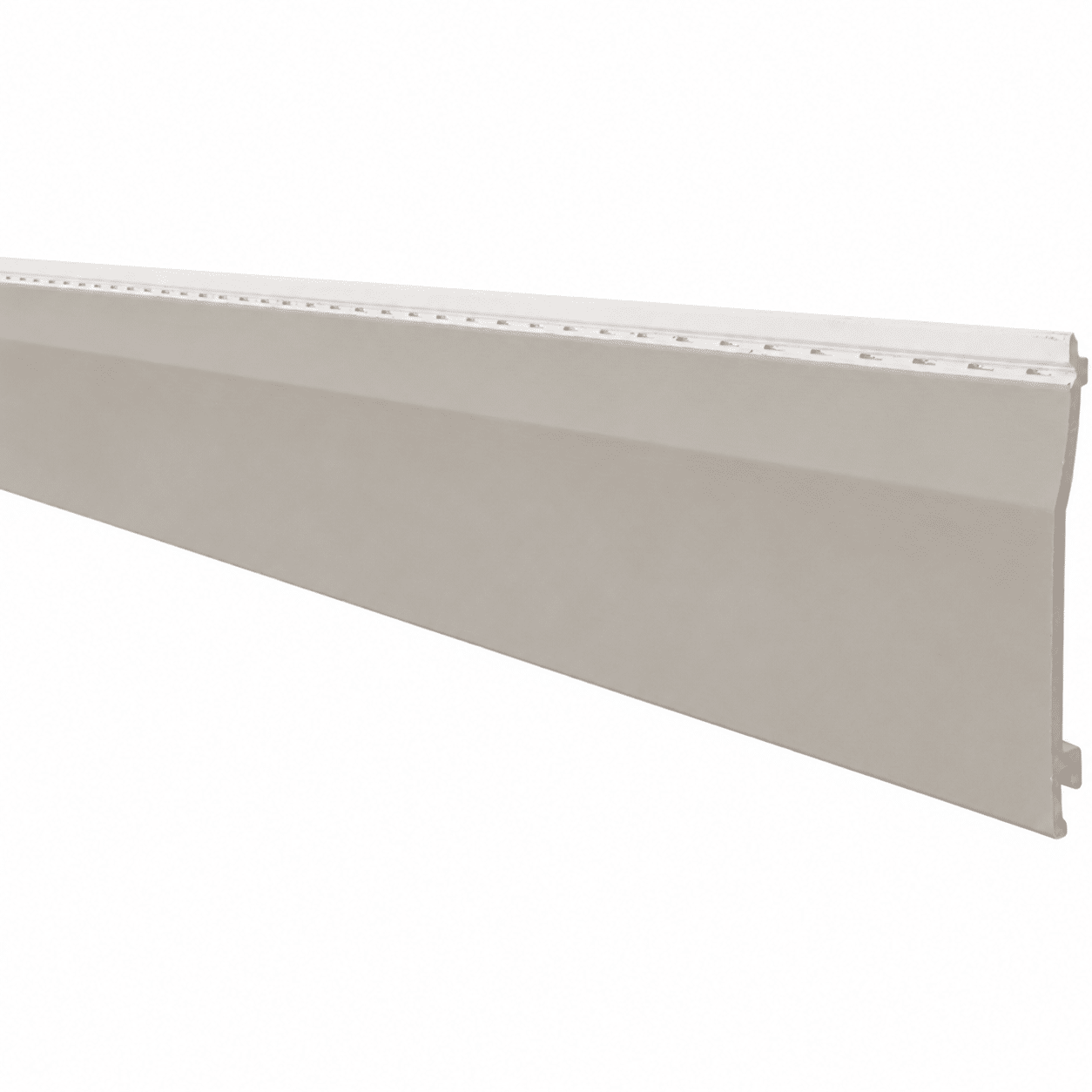

- Agate Grey: Woodgrain foil, nearest equivalent RAL 7038
White provides a bright, traditional finish. The three woodgrain colours recreate the appearance of painted timber while retaining the low-maintenance benefits of PVC cladding.
Features and Benefits
- Genuine Freefoam FC151 shiplap cladding
- Traditional single-shiplap overlapping profile
- 5m board length
- 150mm installed cover width
- Approximately 0.75m² coverage per board
- Suitable for horizontal and vertical installation
- Hidden fixing edge for a clean finished appearance
- Durable, weather-resistant PVC-U construction
- Will not rot like traditional timber cladding
- Does not require regular painting or staining
- Available with matching Freefoam trims
- Suitable for new-build and refurbishment projects
Where Can 150mm Shiplap Cladding Be Used?
The FC151 profile can provide a decorative and protective external facing across many parts of a building. Common applications include dormer cheeks, gable ends, house extensions, feature walls, garden rooms, porches and panels between floors.
It can also replace ageing timber boards, damaged render or hanging tiles where the supporting structure and proposed installation comply with the relevant building requirements.
Board Coverage
Each 5m board provides approximately 0.75m² of installed coverage:
- Installed cover width: 150mm
- Board length: 5m
- Coverage calculation: 5m × 0.15m = 0.75m²
Allow additional material for cuts, corners, openings and site wastage. Matching butt joints and continuous H trims are available where board lengths must be joined.
Freefoam 150mm Shiplap Cladding Specification
- Manufacturer: Freefoam Building Products
- Range: Standard and Woodgrain Shiplap
- Base product code: FC151
- Length: 5000mm
- Installed cover width: 150mm
- Approximate overall board width: 174mm
- Approximate profile depth: 17mm
- Coverage: Approximately 0.75m² per board
- Approximate weight: 2.75kg per board
- Material: Cellular PVC with a weather-resistant outer surface
- Manufacturer pack quantity: 5 boards
- TWS sale quantity: One 5m board
Installation Guidance
Install the cladding over a suitable breather membrane and treated support battens. Freefoam typically specifies 25mm × 50mm battens positioned at maximum 400mm centres, although the complete installation must follow the current Freefoam instructions and applicable building regulations.
Maintain continuous ventilation behind the boards and leave the required expansion clearances at board ends, corners and openings. Secure each board with corrosion-resistant cladding screws through the fixing lip without restricting normal thermal movement.
Browse our Freefoam 150mm shiplap cladding and trims for compatible corners, joints, edge profiles and starter trims.
For further technical details, visit the Freefoam FC151 Shiplap Cladding page.
